2D Riemann Test 17 Initial States:

Test 17
T_final		0.3000
Upper Left		Upper Right
P	1.0000	P	1.0000
d	2.0000	d	1.0000
v_x	0.0000	v_x	0.0000
v_y	-0.3000	v_y	-0.4000
Lower Left		Lower Right
P	0.4000	P	0.4000
d	1.0625	d	0.5197
v_x	0.0000	v_x	0.0000
v_y	0.2145	v_y	-1.1259

2D Riemann Test 17 Final States:

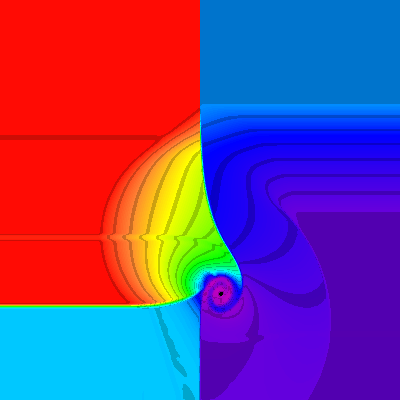

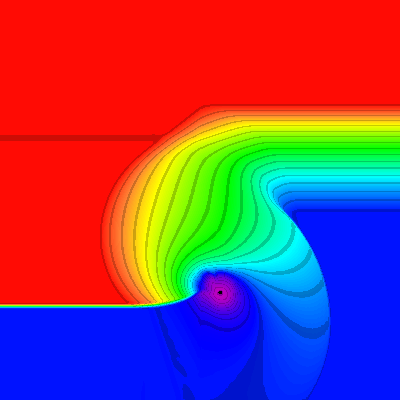

Final Density	Final Pressure

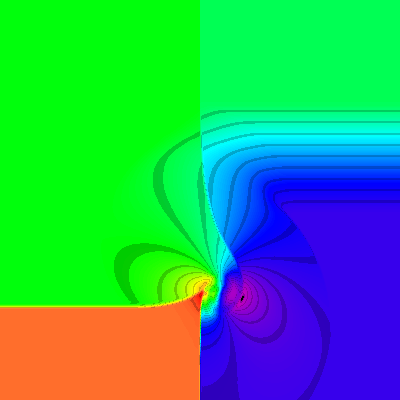

Final V_x	Final V_y
( min: Auto Max: Auto)
