2D Riemann Test 6 Initial States:

Test 6
T_final		0.3000
Upper Left		Upper Right
P	1.0000	P	1.0000
d	2.0000	d	1.0000
v_x	0.7500	v_x	0.7500
v_y	0.5000	v_y	-0.5000
Lower Left		Lower Right
P	1.0000	P	1.0000
d	1.0000	d	3.0000
v_x	-0.7500	v_x	-0.7500
v_y	0.5000	v_y	-0.5000

2D Riemann Test 6 Final States:

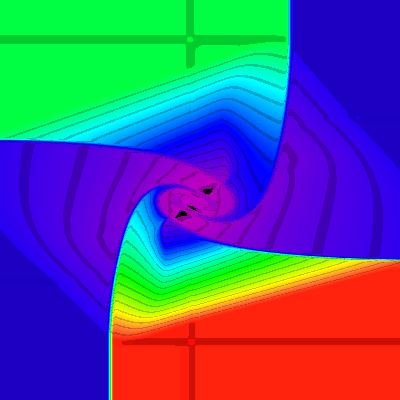

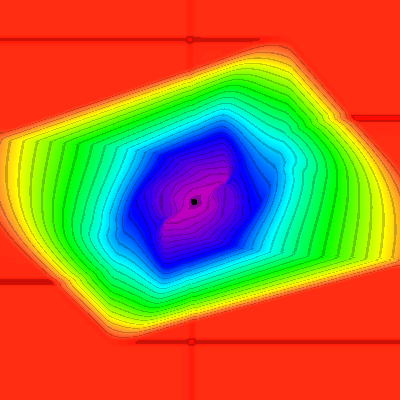

Final Density	Final Pressure

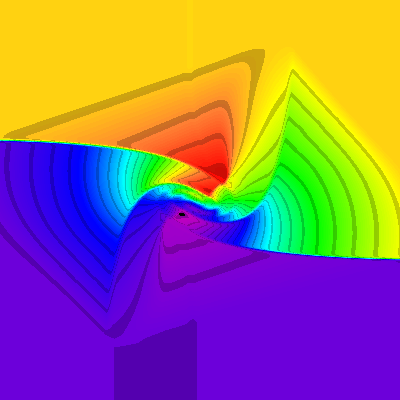

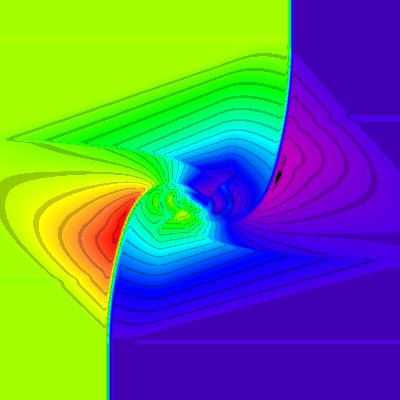

Final V_x	Final V_y
( min: Auto Max: Auto)
