2D Riemann Test 4 Initial States:

Test 4
T_final		0.2500
Upper Left		Upper Right
P	0.3500	P	1.1000
d	0.5065	d	1.1000
v_x	0.8939	v_x	0.0000
v_y	0.0000	v_y	0.0000
Lower Left		Lower Right
P	1.1000	P	0.3500
d	1.1000	d	0.5065
v_x	0.8939	v_x	0.0000
v_y	0.8939	v_y	0.8939

2D Riemann Test 4 Final States:

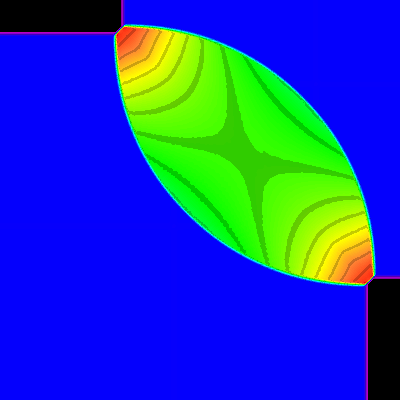

Final Density	Final Pressure

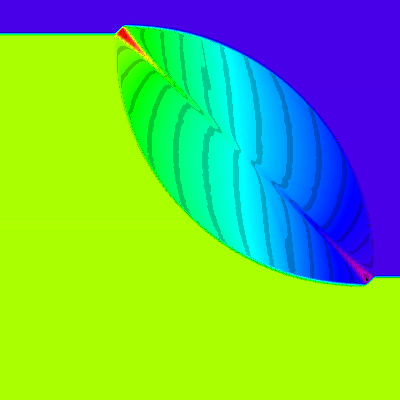

Final V_x	Final V_y
( min: Auto Max: Auto)
