2D Riemann Test 3 Initial States:

Test 3
T_final		0.3000
Upper Left		Upper Right
d	0.5323	d	1.5000
P	0.3000	P	1.5000
v_x	1.2060	v_x	0.0000
v_y	0.0000	v_y	0.0000
Lower Left		Lower Right
d	0.1380	d	0.5323
P	0.0290	P	0.3000
v_x	1.2060	v_x	0.0000
v_y	1.2060	v_y	1.2060

2D Riemann Test 3 Final States:

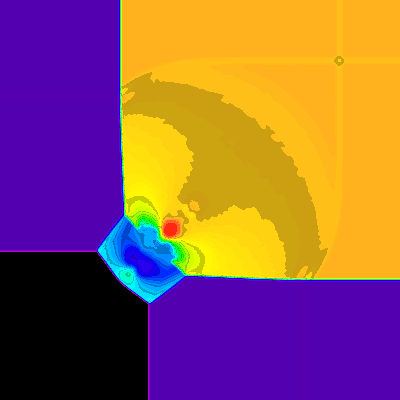

Final Density	Final Pressure

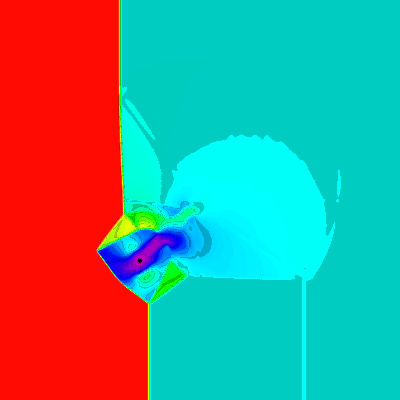

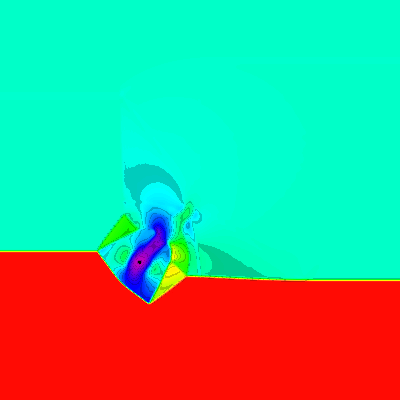

Final V_x	Final V_y
( min: Auto Max: Auto)
