Epoch of Reionization

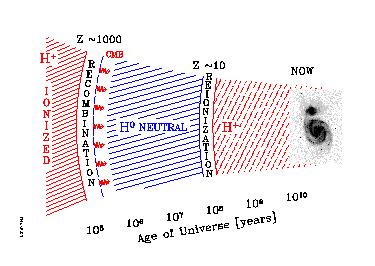

above plot (full resolution jpeg, 106 KB)

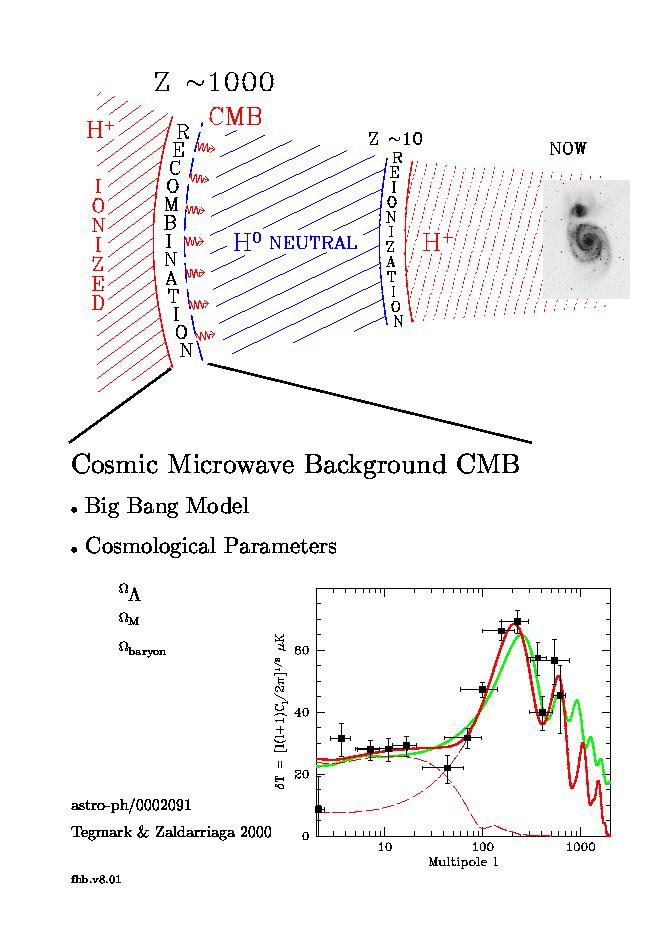

slide 2 (full resolution jpeg, 93 KB)

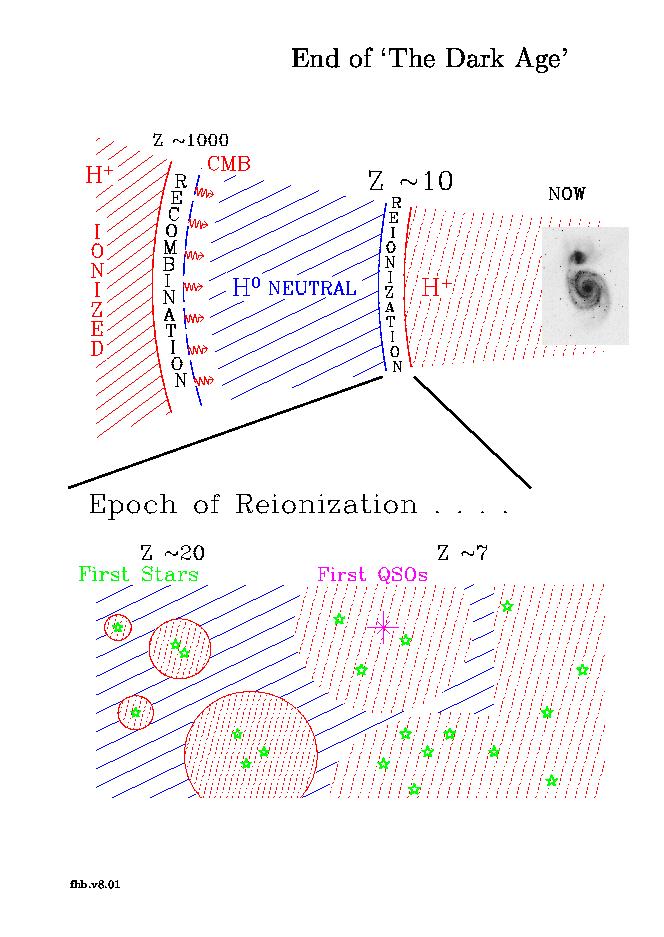

slide 3 (full resolution jpeg, 116 KB)

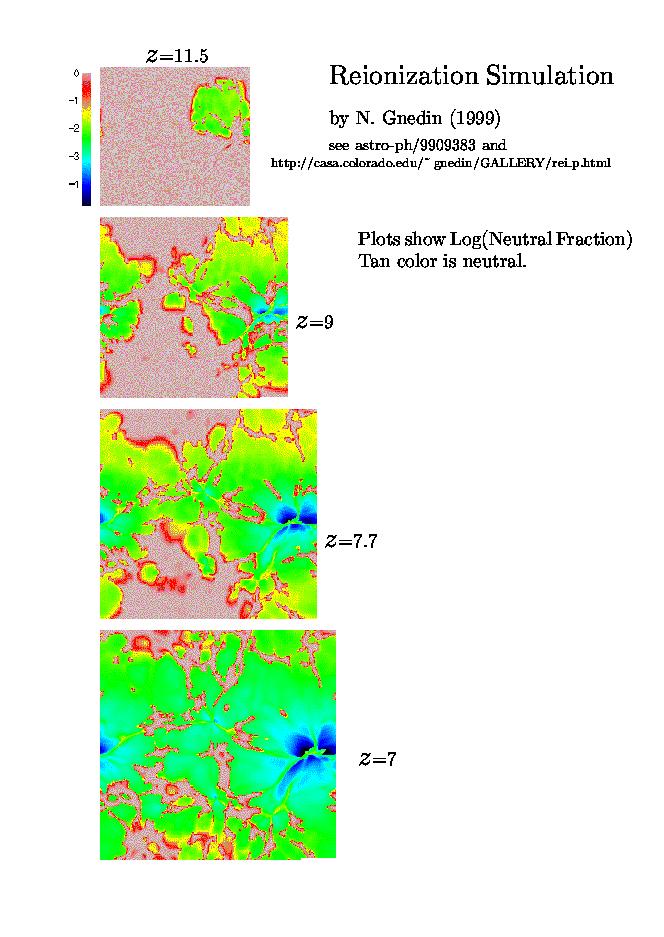

slide 4 (full resolution jpeg, 90 KB)

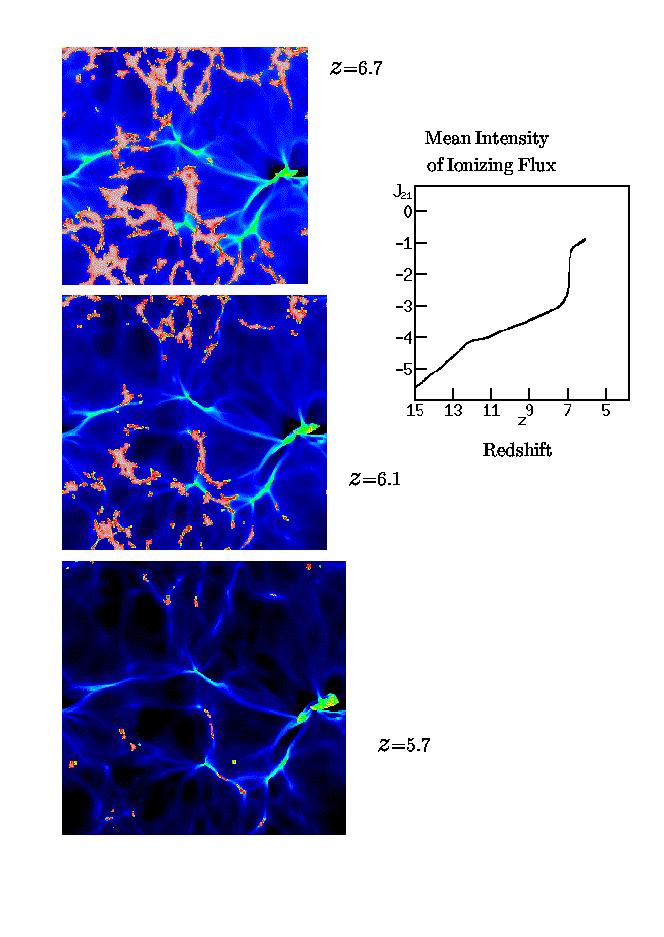

slide 5 (full resolution jpeg, 74 KB)
slide 6 (full resolution jpeg, 59 KB)

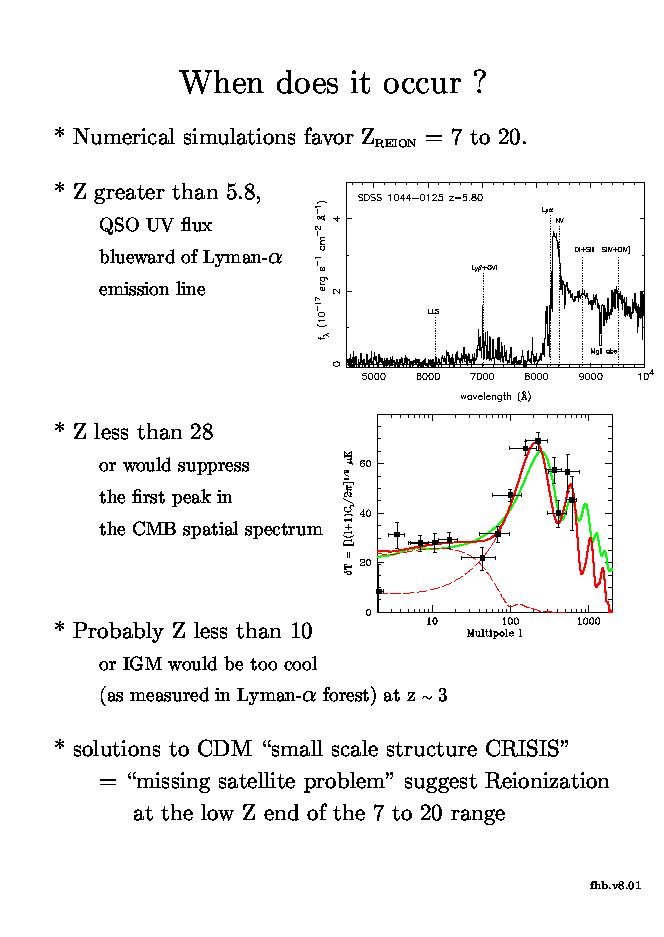

slide 7 (full resolution jpeg, 86 KB)

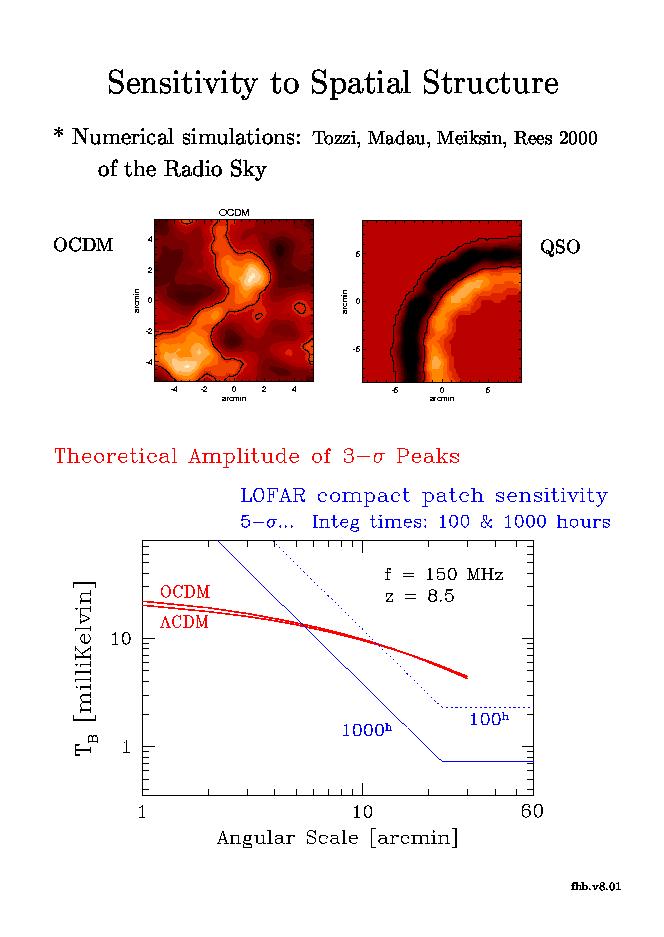

slide 8 (full resolution jpeg, 71 KB)

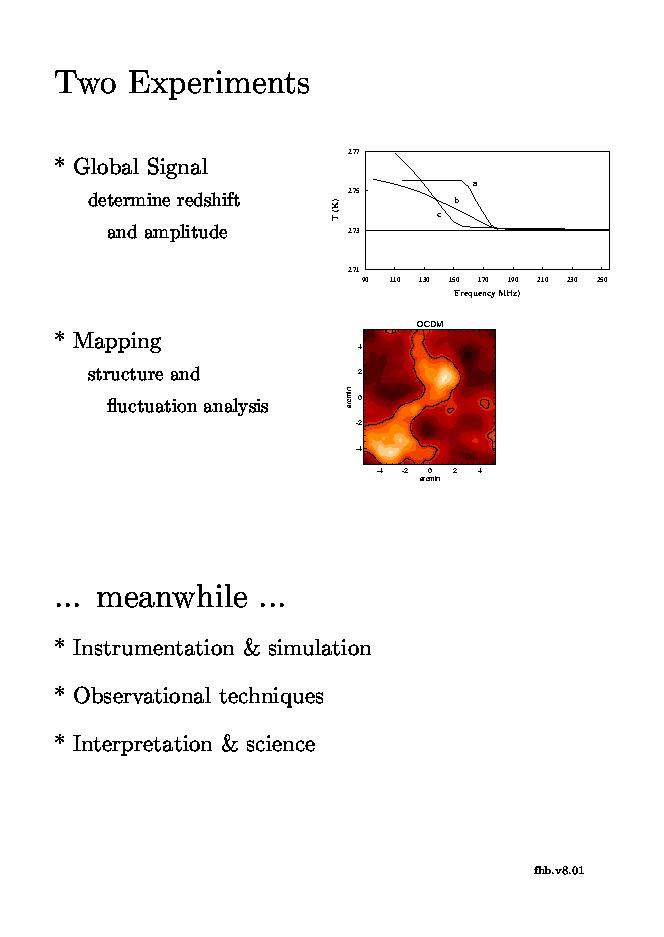

slide 9 (full resolution jpeg, 46 KB)

nicer, gzipped tar file of original Postscript figs (732 KB)

The Tozzi-Iliev Diagram
